Marine Stainless Steel Pipe Diameter Chart

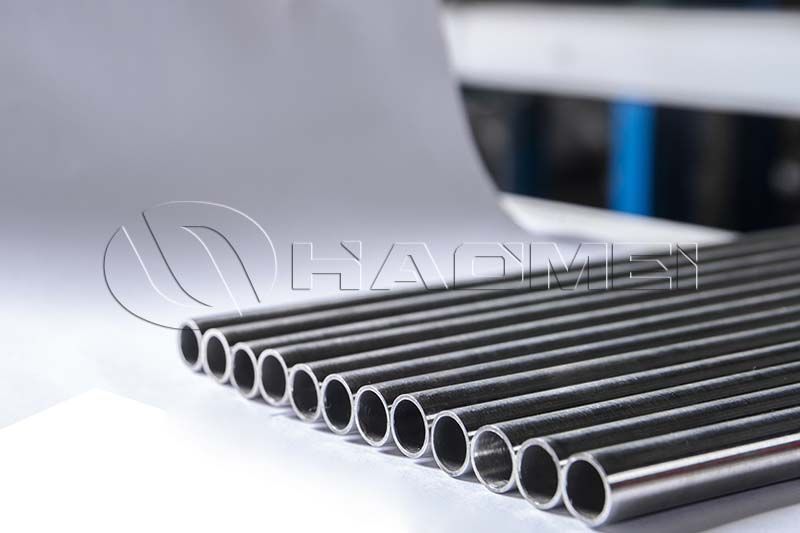

In the design and procurement of marine piping systems, the stainless steel pipe diameters are a core parameter, directly affecting the system's flow rate, pressure resistance, installation compatibility, and procurement costs.
Common Diameter Specifications of Marine Stainless Steel Pipes
Marine stainless steel pipes conform to GB/T 5312-2025 and CB/T 4154-2011 standards, using both nominal diameter DN and outer diameter Φ for marking. Common specifications cover small-diameter instrument pipes to large-diameter main pipes, as follows:
1. Small Diameter (Instrument/Control/Auxiliary Pipes)
DN15 (Φ21.3), DN20 (Φ26.9), DN25 (Φ33.7), DN32 (Φ42.4)
Applications: Engine room instrument pipes, hydraulic auxiliary pipes, freshwater branch pipes, fire sprinkler branch pipes
2. Medium Diameter (Mainstream General-Purpose Pipes)
DN40 (Φ48.3), DN50 (Φ60.3), DN65 (Φ76.1), DN80 (Φ88.9), DN100 (Φ114.3)
Applications: Seawater/ Freshwater main pipes, fuel oil delivery pipes, fire main pipes, domestic water pipes.
3. Large Diameter (Main/Chief Pipes)
DN125 (Φ139.7), DN150 (Φ168.3), DN200 (Φ219.1), DN250 (Φ273)
Applications: Ballast water main pipes, fire main pipes, engine room sewage main pipes, large cargo ship main piping systems.
4. Non-Standard Custom Diameters
Custom diameters from Φ6 to Φ630mm can be made for special working conditions, meeting the dimensional tolerances of classification societies (CCS/DNV/LR).
How to choose the diameter of marine stainless steel pipes?
Pipe diameter selection is not always better the larger it is; it requires comprehensive judgment based on flow rate, pressure, medium, and classification society specifications:
1. Selection based on flow rate and velocity (basic principle)
Follow the formula: Pipe diameter = √(4 × flow rate ÷ π × velocity). Standard flow velocities for marine piping systems:
Fresh water/seawater: 1.5-3 m/s
Fuel oil/lubricating oil: 0.5-1.5 m/s
Compressed air: 8-15 m/s
Excessive flow velocity will increase pressure loss, while insufficient flow velocity will easily lead to impurity deposition. Prioritize standard nominal diameters to avoid non-standard diameters that may cause incompatibility with fittings.
2. Matching Pressure Capacity with Wall Thickness
According to Barlow's formula, pressure capacity is inversely proportional to diameter and directly proportional to wall thickness:
High-pressure piping systems (steam, hydraulic, pressure > 1.6MPa): Select small diameter + thick wall (e.g., DN25-DN50, SCH80/SCH160)
Medium-low pressure piping systems (freshwater, fire protection, pressure < 1.6MPa): Select diameter (DN50-DN100, SCH40)
Large-diameter main pipes (ballast, sewage): Low pressure, large diameter; wall thickness can be calculated according to classification society specifications.
3. Selecting Based on Medium and Operating Conditions
Seawater/Salt Spray Environment: 316L stainless steel is preferred; diameter should be selected based on flow rate to avoid corrosion and blockage due to insufficient diameter.
High-Temperature Steam: Diameter should not be too large; match wall thickness to ensure heat and pressure resistance.
Fire Protection Systems: Main pipe DN100-DN200, branch pipe DN50-DN80, to meet emergency flow requirements.
4. Selection according to classification society standards
Pipes must comply with the requirements of classification societies such as CCS, DNV, and ABS. Arbitrary reduction/increase in diameter is prohibited. Critical piping systems (fire protection, ballast) require strength verification based on wall thickness and diameter.
The impact of diameter on the price of marine stainless steel pipes
Diameter is a core factor in pricing. Combined with material, wall thickness, and manufacturing process, the impact logic is clear:
1. Larger diameter, higher unit price
Raw material consumption: Larger diameters use more steel; DN200 is 30%-60% more expensive than DN50.
Processing difficulty: Larger diameters require large cold/hot rolling equipment, significantly increasing the processing cost of seamless pipes.
Conventional cost-effectiveness range: DN25-DN100 are mass-produced specifications with the most stable prices; smaller diameters (<DN25) have higher prices per kilogram due to more refined processing; larger diameters (>DN150) are custom-made and have a significant premium.
2. Price Increase Based on Diameter + Wall Thickness
For the same diameter, the thicker the wall, the higher the price. Larger diameter + thicker wall combinations command the highest premium: SCH40 (standard wall thickness): Base price SCH80: 15%-25% higher than SCH40 SCH160/XXS: 30%-70% higher than SCH40 Example: For DN100 seamless 316L steel pipe, the price difference between SCH40 and SCH80 can reach over 20%.
3. Other Influencing Factors
Material: 316L stainless steel pipe cost is 10%-20% more expensive than 304; the premium is more significant for large-diameter 316L pipes.
Process: Cold-drawn seamless pipes are 10%-15% more expensive than welded pipes; large-diameter pipes should prioritize welded pipes to control costs.
Certification: Classification society certification (CCS/DNV) adds 5%-8% to the price; non-standard diameters incur an additional 10%-25% customization fee.
Procurement Recommendations
Remember Common Diameters: DN15-DN200 covers 90% of marine applications; prioritize national/ship standard specifications.
Four-Step Selection Method: Calculate flow rate → Determine pressure → Match medium → Adhere to specifications; avoid blindly choosing large diameters.
Cost Control: Use standard wall thickness + mass-produced diameter for medium and low pressure applications; use small to medium diameter + thickened wall for high pressure applications; prioritize welded pipes for large diameters; bulk purchasing reduces premiums.
Original source: https://www.marinesteelpipe.com/a/marine-stainless-steel-pipe-diameter-chart.html
