Stainless Steel Pipes for Shipbuilding
Marine piping systems operate long-term in the high-salt-spray, high-humidity, and highly corrosive marine environment, continuously enduring seawater erosion, chloride ion corrosion, and alternating pressure and temperature fluctuations. The quality of materials used directly impacts a ship's lifespan, maintenance costs, and navigational safety.
Traditional 304 and 316 austenitic stainless steels, due to their cost-effectiveness, are widely used in general marine piping. However, they are ill-suited for the harsh conditions of deep-sea operations and specialized marine equipment. In contrast, 2205 and S32750 duplex stainless steels, with their superior structure and performance, have become core materials for modern high-end ships and marine engineering piping.
I. Core Differences in Basic Materials
The differences in material performance essentially stem from variations in metallographic structure and alloy composition. 304 and 316 are single-phase austenitic stainless steels, relying on nickel to stabilize their structure. They possess good toughness, are easy to weld, and are easy to process, making them general-purpose civilian pipe materials. While 316 incorporates molybdenum, slightly improving corrosion resistance, its single metallographic structure inherently limits its performance, making it unsuitable for complex marine conditions.

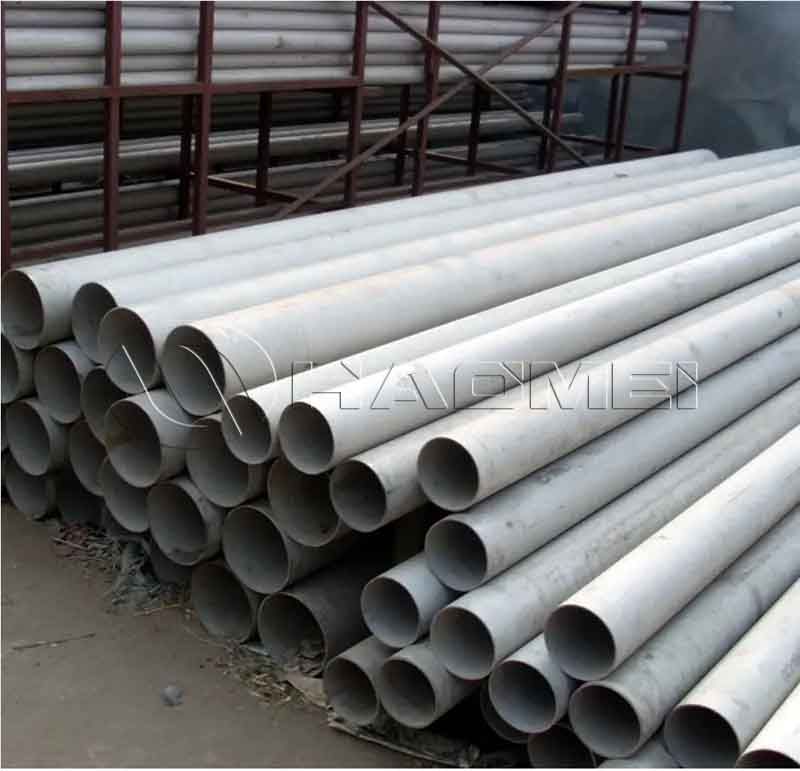

S2205 and s32750 material employ a composite metallographic structure with approximately 50% austenite and 50% ferrite, balancing the weldability and toughness of austenitic steel with the high strength and stress corrosion resistance of ferritic steel.
In terms of composition, s2205 focuses on high chromium, high molybdenum, high nitrogen, and low nickel, significantly improving corrosion resistance while controlling costs. S32750, as a super duplex steel, further upgrades its alloy element content, achieving a PREN value exceeding 43 for pitting corrosion resistance, making it suitable for various extremely harsh marine conditions.
II. Comparison of Four Core Performance Dimensions
1. Corrosion Resistance
Seawater chloride ions are the core cause of corrosion in ship piping, easily leading to pitting, crevice corrosion, and cracking.
304 stainless steel has the worst corrosion resistance, suitable only for indoor shipboard piping and freshwater piping where corrosion is non-corrosive; it is prone to rapid rusting and pitting upon contact with seawater.
316 stainless steel has better resistance to general corrosion than 304, but its resistance to chloride ion corrosion is still weak, limiting its use to low-load piping with intermittent seawater contact.
Duplex 2205 pipe has a PREN value of 32-36, offering several times the resistance to chloride ion corrosion compared to 316, making it suitable for stable application in conventional corrosive conditions such as ballast water and seawater cooling.
S32750 boasts superior corrosion resistance, resisting high temperatures, high concentrations of chloride ions, and acidic seawater, making it suitable for extreme environments such as deep-sea and highly polluted ocean voyages.
2. Mechanical Strength
Ship pipelines must withstand vibration, high pressure, and the tensile stress of hull deformation. 304 and 316 stainless steels have a yield strength of only around 205 MPa, requiring thicker pipe walls to meet pressure requirements, increasing hull weight and installation costs, and their resistance to deformation and fatigue is generally average.
S2205 has a yield strength of 450-650 MPa, twice that of ordinary austenitic stainless steel; S32750 offers even better strength, impact resistance, and fatigue resistance. Both can be designed with thin walls, meeting operational requirements while reducing hull weight, improving fuel economy and load capacity.
3. Resistance to Stress Corrosion Cracking
Shipboard pipelines operate under complex conditions of corrosion, stress, and temperature fluctuations. Stress corrosion cracking is a major failure risk, highly concealed and posing significant safety hazards. 304 and 316 steels are highly susceptible to chloride ion stress corrosion cracking, potentially developing latent cracks within 1-3 years of service, leading to leaks and pipe bursts.
These two duplex stainless steels, with their composite metallographic structure, fundamentally avoid this defect, allowing for stable operation under complex alternating conditions for extended periods, significantly reducing the probability of pipeline failure.
4. Lifecycle Economics and Scenarios Adaptability
While duplex stainless steel has a higher unit price per purchase, its lifecycle cost-effectiveness far surpasses that of ordinary stainless steel. The service life of duplex stainless steel is 3-5 times that of 304 and 316, significantly reducing maintenance, replacement costs, and downtime losses.
Precise categorization of application scenarios: 304 is suitable for indoor ventilation and freshwater transportation; 316 is suitable for auxiliary pipelines subject to mild corrosion; 2205 is suitable for mainstream marine seawater pipelines, balancing performance and cost; S32750 is suitable for high-end and demanding scenarios such as deep-sea drilling vessels and ocean-going special vessels.
III. Material Selection Summary
304 and 316 stainless pipes are basic general-purpose pipe materials, suitable only for low-corrosion conventional operating conditions in ships; 2205 ss pipe is a high-performance, cost-effective upgrade material, suitable for most civilian ocean-going vessels and marine engineering; S32750 is a high-end, high-performance pipe material that can replace some high-end alloy materials, meeting the requirements of extreme marine operating conditions, and is the preferred choice for cost reduction and efficiency improvement in high-end marine pipelines.
